WebUtil Configuration

 WebUtil Configuration


To configure WebUtil we have to configure a data source with the target database (in this case the target database is not the database we used for the RCU configuration)

Step 1 - Add the correct tns entries of the target database into the tnsnames.ora file of your app server.


[oracle@testserver-k ~]$ vi $ORACLE_HOME network/admin/tnsnames.ora

<tns-alias> =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = <ip-of-target>)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = <service-name-of-target-database>)
    )
  )


[oracle@testserver-k ~]$ tnsping <tns-alias>

Step 2 - Connect to the weblogic console to configure a jdbc data source.


http://<ip-address>:7001/console

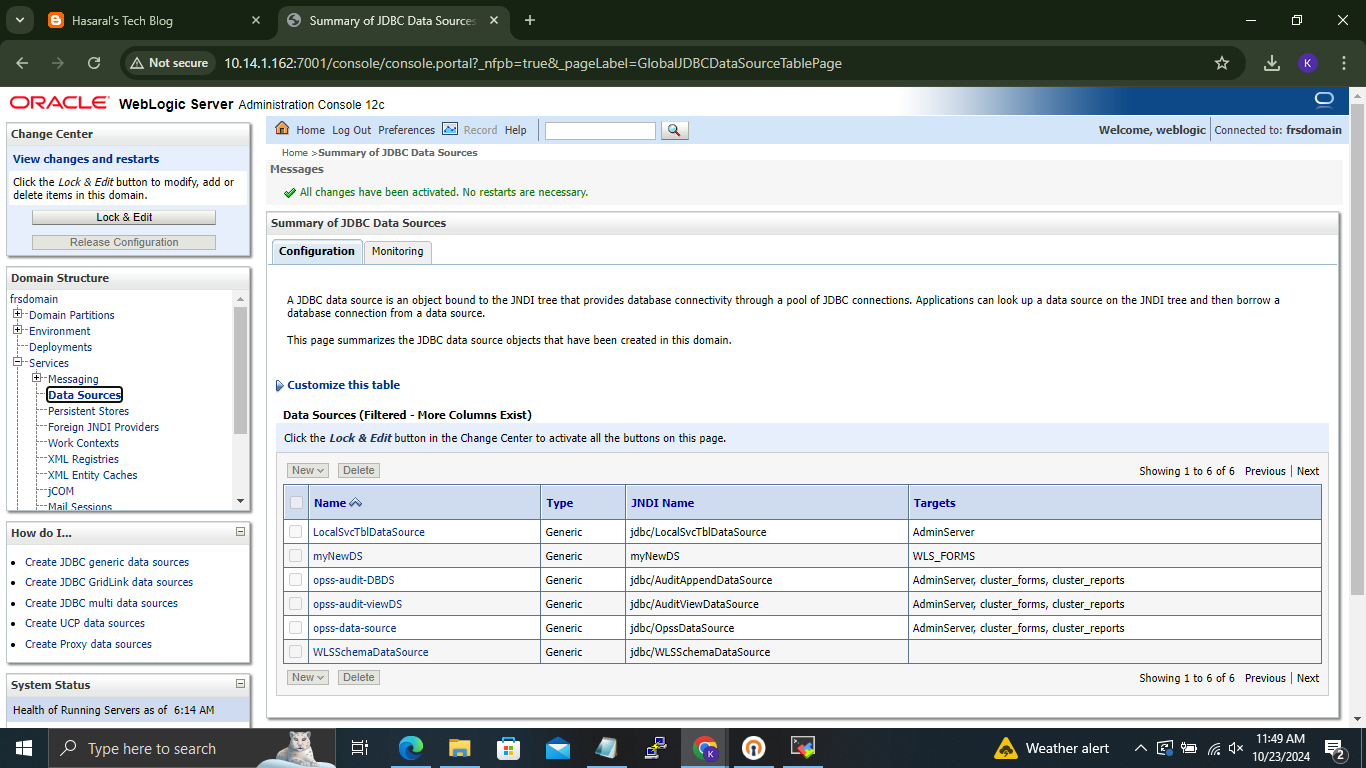

Navigate to: Services > Data Sources

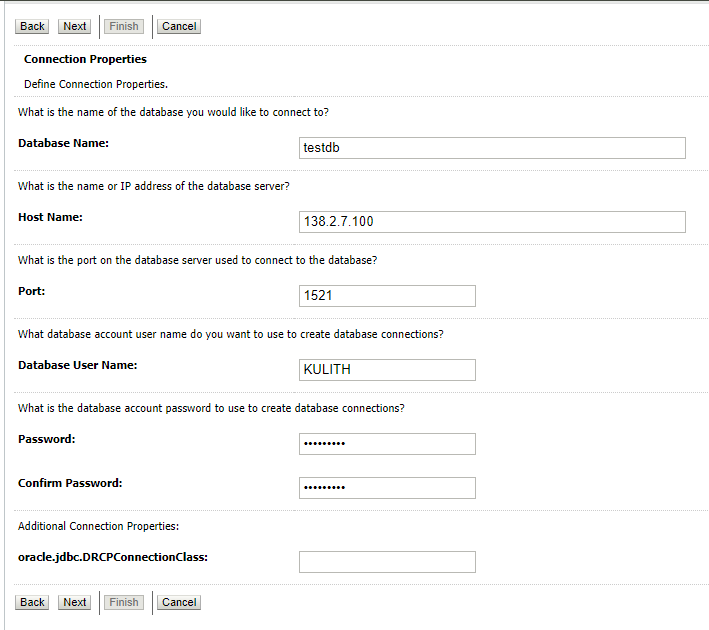

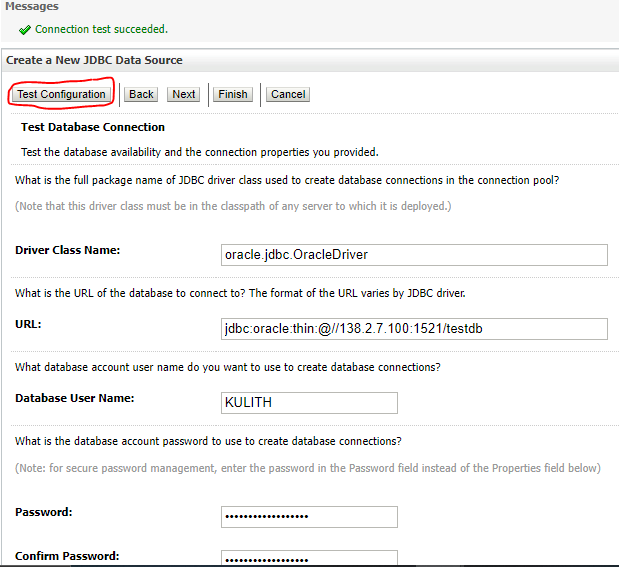

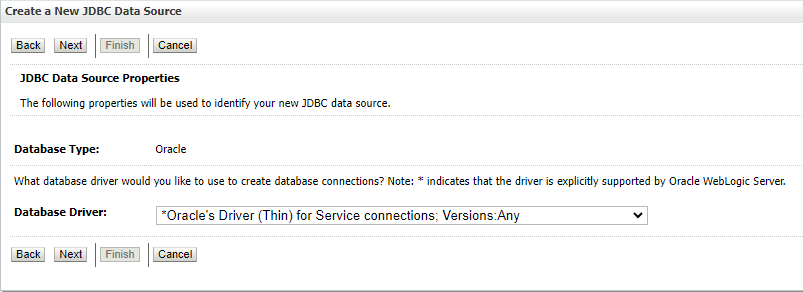

Select Lock & Edit and create a new Generic Data Source

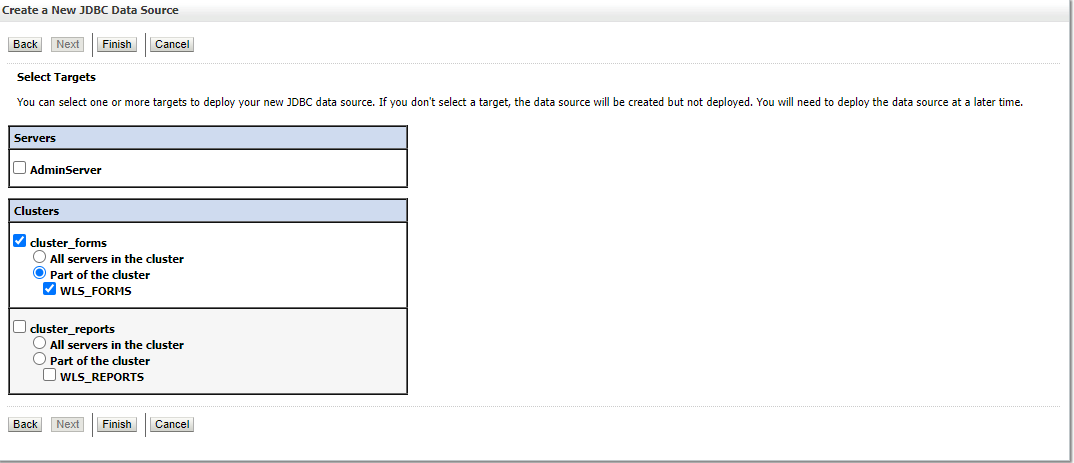

You can select the necessary components that you need the data source to be configured to.


Save and Activate Changes

Step 3 - As the weblogic user run the 'setWLSEnv.sh' script.


[weblogic@testserver-k ~]$ cd /u01/app/oracle/product/12.2.1/wlserver/server/bin
[weblogic@testserver-k bin]$ source setWLSEnv.sh


Step 4 - Test whether you can connect to the target database from the app server.


[oracle@testserver-k ~]$ . oraenv
ORACLE_SID = [oracle] ? <rcu-db>
[oracle@testserver-k ~]$ sqlplus <user>/<password>@<target-db-ip>:1521/<target-db-SID>

Step 5 - Execute the create_webutil_db.sql script


SQL> @/u01/app/oracle/product/12.2.1/forms/create_webutil_db.sql

Step 6 - Download the Jacob file from the following link and transfer it to a location inside your server.



[weblogic@testserver-k SOFTWARES]$ unzip jacob-1.21.zip

Step 7 - Copy the files to the respective locations as follows


[weblogic@testserver-k softwares]$ cp -r jacob-1.21/jacob-1.21-x64.dll /u01/app/oracle/product/12.2.1/forms/webutil/win64/
[weblogic@testserver-k softwares]$ cp -r jacob-1.21/jacob-1.21-x86.dll /u01/app/oracle/product/12.2.1/forms/webutil/win32/
[weblogic@testserver-k softwares]$ cp -r jacob-1.21/jacob.jar /u01/app/oracle/product/12.2.1/forms/java/

Step 8 - Take a backup of the 'sign_webutil.sh' file


[weblogic@testserver-k ~]$ cd /u01/app/oracle/config/domains/frsdomain/config/fmwconfig/components/FORMS/instances/forms1/bin
[weblogic@testserver-k bin]$ cp sign_webutil.sh sign_webutil.sh_ORG

Step 9 - Append the following values into the 'sign_webutil.sh' file.


KEYSTORE_PASSWORD=<weblogic-password>
JAR_KEY_PASSWORD=<weblogic-password>

Step 10 - Sign the jacob.jar file


[weblogic@testserver-k bin]$ ./sign_webutil.sh /u01/app/oracle/product/12.2.1/forms/java/jacob-1.21/jacob.jar

/u01/app/oracle/product/12.2.1/wlserver/../jdk/bin/keytool: No such file or directory
/u01/app/oracle/product/12.2.1/wlserver/../jdk/bin/jarsigner: No such file or directory
)

To verify whether the signing was successful:

[weblogic@appsvruat bin]$ jarsigner -verify -verbose /U02/app/oracle/product/12.2.1/forms/java/jacob-1.21/jacob.jar

Step 11 - Edit the 'extensions.jnlp' file

[weblogic@testserver-k bin]$ cd /u01/app/oracle/product/12.2.1.3/forms/java/

[weblogic@testserver-k java]$ vi extensions.jnlp

FROM:

<!-- <jar href="jacob.jar"/> -->

TO:

<jar href="jacob.jar"/>

Step 12 - Add the following values below the webutil configuration in your formsweb.cfg file if they are not present.

[weblogic@testserver-k ~]$ cd /u01/app/oracle/config/domains/frsdomain/config/fmwconfig/servers/WLS_FORMS/applications/formsapp_12.2.1/config/

[weblogic@testserver-k config]$ vi formsweb.cfg

[webutil]

WebUtilArchive=frmwebutil.jar,jacob.jar

WebUtilLogging=on

WebUtilLoggingDetail=normal

WebUtilErrorMode=Alert

WebUtilDispatchMonitorInterval=5

WebUtilTrustInternal=true

archive=frmall.jar

baseHTML=webutilbase.htm

baseHTMLjpi=webutiljpi.htm


You have successfully conifgured WebUtil!

Follow the below guide to create a reports server:

Configuring a Reports Server in Oracle WebLogic Forms & Reports 12.2.1
